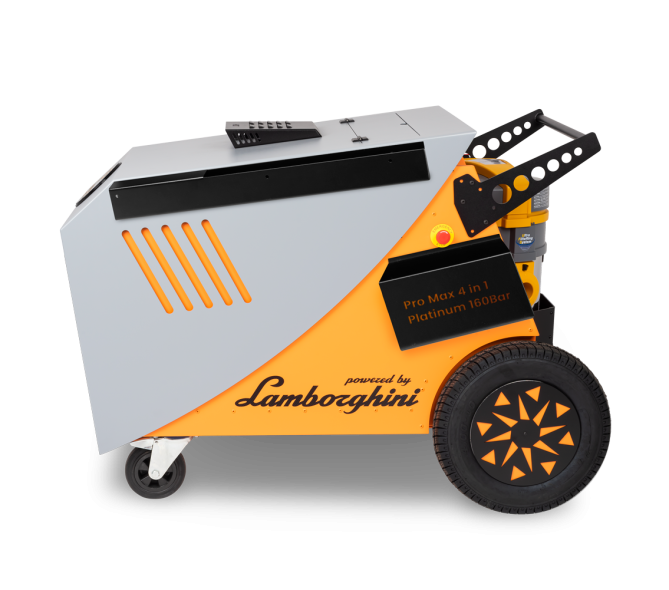

Fortador PRO MAX 4 in 1 Platinum
Enormous power of the PRO MAX machine enhanced with an additional high-pressure washing function!
The Fortador PRO MAX 4 in 1 is our latest portable steam car wash offering, created in response to the demands of our customers.
The additional 160 BAR high-pressure washing function distinguishes the PRO MAX 4 in 1 from our flagship Fortador PRO MAX, adding even more power and significantly expanding its application range.
Thanks to the new function, the washer allows for high-pressure cleaning, similar to stationary touchless car washes, while maintaining its mobility. The function enables effective washing of sidewalks, facades, and heavily soiled wheels, among other things.
The device has two hoses for hot steam washing, allowing two cars to be cleaned simultaneously, a steam mop for washing with detergent, and a fourth hose for high-pressure washing! Additionally, the PRO MAX 4 in 1 features a built-in Ghibli & Wirbel vacuum cleaner, designed for dry/wet use.
All models in the PRO MAX series are the only machines on the market that allow for the delivery of two different detergents with steam at the same time. All our washers require no permits, notifications, or wastewater and chemical discharge!
The machines are made from eco-friendly and corrosion-resistant aluminum alloy.
The model is most often chosen by:
- mobile car washes
- car workshops
- auto detailing points
- car dealerships
- tire service stations
Their modern design and top quality components guarantee a leading position in the industry. The machines are built in accordance with CE norms and standards.
Specification
- 10m high-pressure hose with long lance and gun
- Emergency STOP button
- Chemical-free descaling system
- Boiler made of boiler steel
- Aluminum casing
- Hot and cold detergent delivery
- Fire protection system
- Water pressure 160 BAR or 2320 PSI
NOTE: possibility to upgrade the pressure washer from 160 BAR to even 500 BAR! - Option for direct connection from a garden hose or operation from a water tank
- Heating time: only 2-7 minutes
- Max steam pressure 16 / 20 BAR depending on the selected variant
- Steam operating temperature 120-140 ºC
Available PRO MAX 4 in 1 Platinum variants: 20 BAR Diesel Hybrid, 16 BAR 100% Electric
Maximum working steam pressure
Steam operating temperature
Boiler temperature
Number of boilers
Total capacity of boilers
Warm-up time
Tank capacity: water / water / det. 1 / det. 2
Operating volume
Voltage and frequency
Fuel consumption (diesel hybrid)
High pressure washing
Net weight
Dimensions
Housing material
Boiler material
Fuel heating system
Chemical-free descaling system
Hot detergent feeding
Emergency button STOP
Shock protection
Work on water tanks or direct connection from a garden hose
7″ LCD touch screen – functions:
Power consumption (W)
max. 20 BAR (290 PSI)
120-140 ºC or 234-273 ºF
max. 260-280ºC thermostat / auto stop
2
11,5 l (3 gal)
2-7 min
25 l (6 gal) / 15,5 l (4 gal) / 5 l (1,3 gal) / 5 l (1,3 gal)
60-78 dB
220-230 V / 50-60 Hz or 380 V-400 V / 50-60 Hz
0,6 l or 0,63 qt in mixed cycle per working hour (oil burner Lamborghini® ECO 3 R)
160 BAR (2320 PSI)
200 kg lub 440 lb
77 cm (30 in) W x 140 cm (55 in) L x 112 cm (45 in) H
Aluminium
Boiler steel
YES
YES
YES
YES
YES
YES
Pressure indicator; monitoring of the level of fluids in tanks; engine hour meter; serial number display; information about the water level in the boiler; information about the operation of the water pump; dry or wet steam setting; service panel; removal of water to prevent it from freezing; launching the detergent feed procedure from the machine
650 + 1150 (vacuum cleaner)
Maximum working steam pressure
Steam operating temperature
Boiler temperature
Number of boilers
Total capacity of boilers
Warm-up time
Tank capacity: water / water / det. 1 / det. 2
Operating volume
Voltage and frequency
High pressure washing
Net weight
Dimensions
Housing material
Boiler material
Fuel heating system
Chemical-free descaling system
Hot detergent feeding
Emergency button STOP
Shock protection
Work on water tanks or direct connection from a garden hose
7″ LCD touch screen – functions:
Power consumption (W)
max. 16 BAR (290 PSI)
120-140 ºC or 234-273 ºF
max. 260-280ºC thermostat / auto stop
2
11,5 l (3 gal)
2-7 min
25 l (6 gal) / 15,5 l (4 gal) / 5 l (1,3 gal) / 5 l (1,3 gal)
60-78 dB
220-230 V / 50-60 Hz or 380 V-400 V / 50-60 Hz
160 BAR (2320 PSI)
200 kg lub 440 lb
77 cm (30 in) W x 140 cm (55 in) L x 112 cm (45 in) H
Aluminium
Boiler steel
YES
YES
YES
YES
YES
YES
Pressure indicator; monitoring of the level of fluids in tanks; engine hour meter; serial number display; information about the water level in the boiler; information about the operation of the water pump; dry or wet steam setting; service panel; removal of water to prevent it from freezing; launching the detergent feed procedure from the machine
3 kW – 11 kW

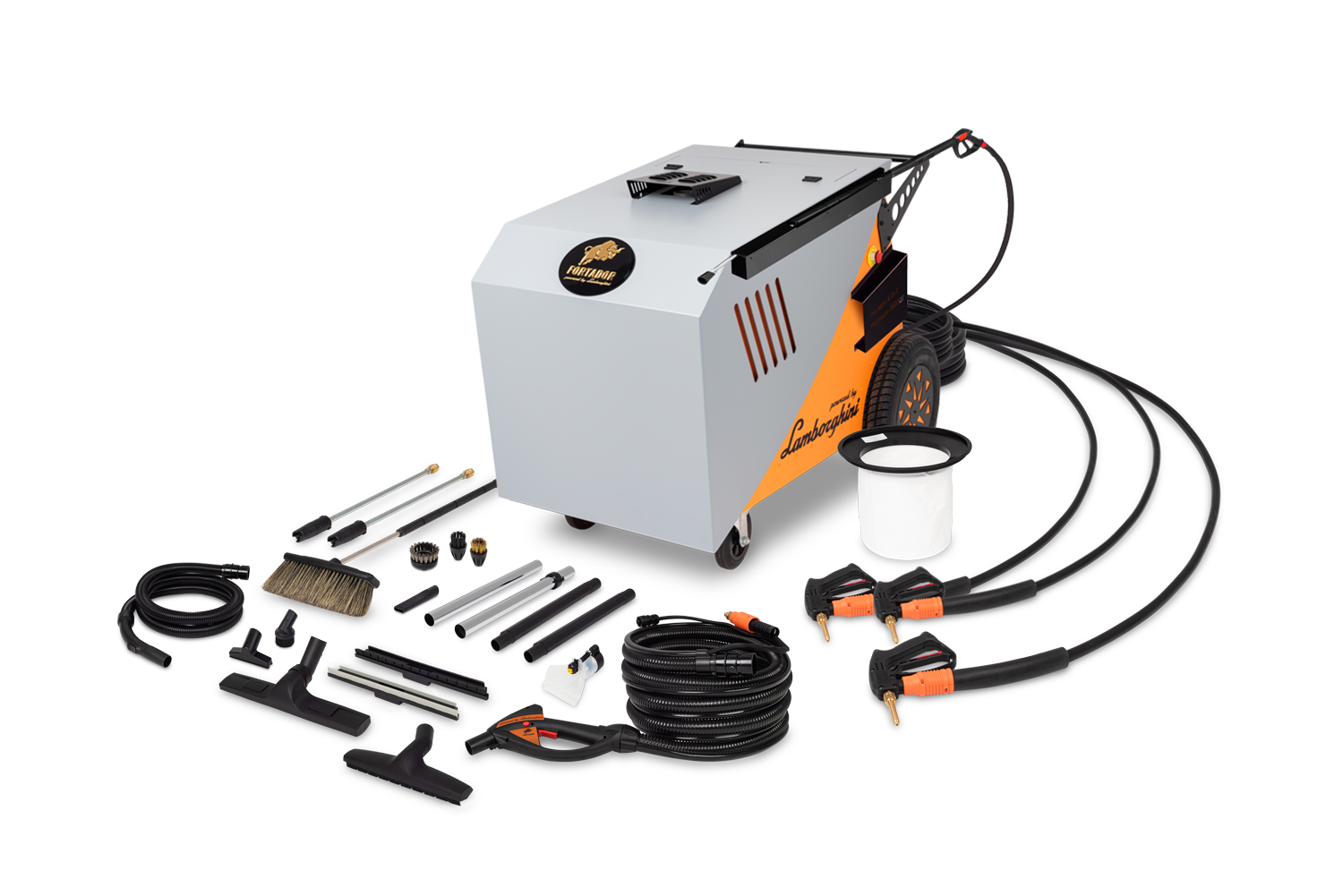

What’s in a set?
Standard accessories included with the PRO MAX 4 in 1 Diesel Hybrid and Electric:
-
- Anti-burn steam gun RL20: 2 pcs.
- Insulated steam hose (10 m / 30 ft.): 2 pcs.
- Washing gun with small nozzle for upholstery cleaning: 1 pc.
- Insulated steam hose for steam washing and extraction (10 m / 30 ft.): 1 pc.
- Ghibli & Wirbel dry/wet vacuum cleaner: 1 pc.
- Set of tips: 1 pc.
- Short lance with steam nozzle with variable spread (50 cm / 20 in): 1 pc.
- Discharge nozzle: 1 pc
- Transport straps: 3 pcs.
- Repair kit: 1 pc.
-
- High-pressure hose (10 m / 30 ft. or 40 m / 120 ft) with foam applicator, gun, nozzle (50 cm and 120 cm), and long lance: 1 pc.
- Steam mop with tip (10 m / 30 ft): 1 pc.
- Nozzle for cleaning cobblestones, driveways, and parking lots: 1 pc.
All Fortador devices have been tailored to meet your needs and preferences!
The machines are made in accordance with these standards and guidelines:
